4 Inch Lift Kit w/ 4-Link Ram 3500 19-23 4WD Diesel 6 Bolt Fox 2.0 Performance Shocks

• Front Lift Method: 4-Link


• Rear Lift Method: Block


• Shocks Included: Yes


• Front Lift Height: 4 inch


• Rear Lift Height: 3 inch

1. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit


2. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit


3. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension



   1. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.





Indexing Ring Option 6 Bolt Indexing Ring

• Kits come standard with 6-Bolt indexing ring kit.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body


• Internal floating piston (Internal Floating Piston) monotube design


• CNC machined 6061-T6 aluminum mounting ends


• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft


• Race-developed high-flow piston design


• Application-specific valving to maximize performance


• Long-lasting clear anodized finish

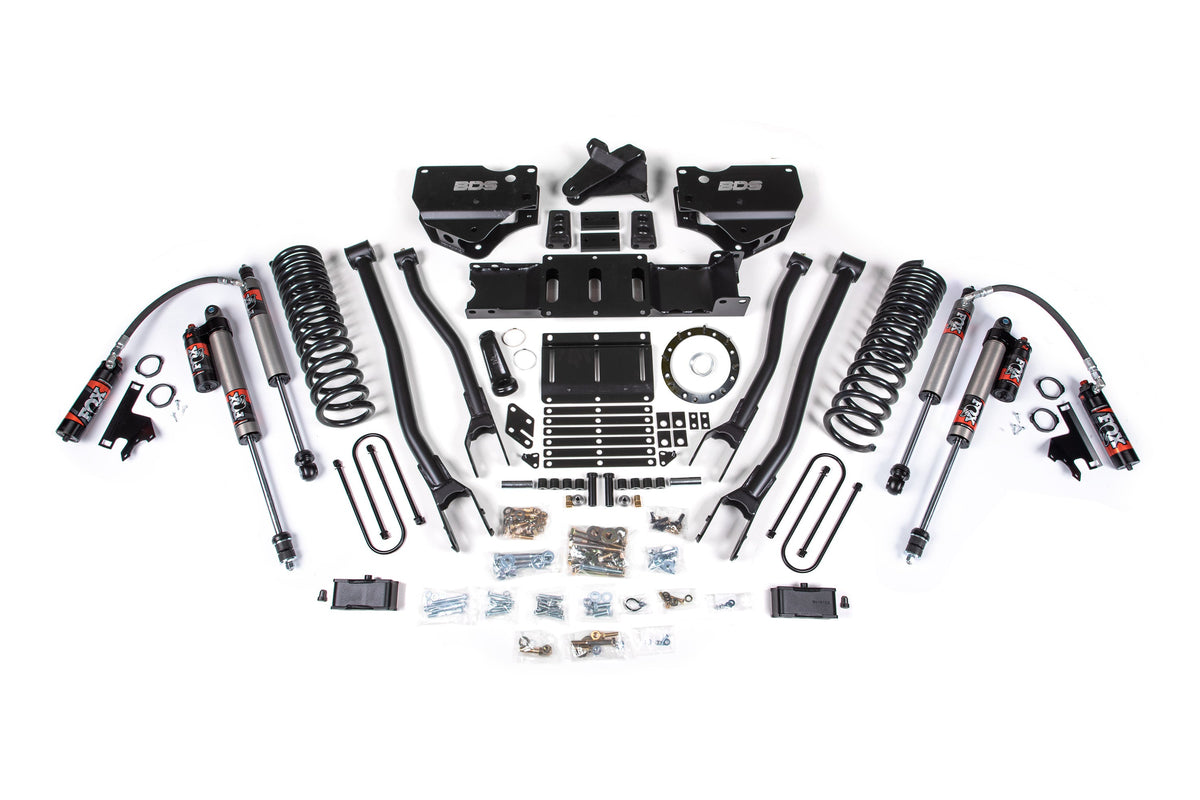

Kit Components:

• Includes one BDS012329, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612291


• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437


• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444


• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374


• Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764


• Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1


• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
