3.5 Inch Lift Kit Jeep Wrangler YJ 87-95 Heavy Duty Leaf Springs NX2 Nitro

SKU: BDS410H-BLDV
(0)
$1,132.45 USD

Designed to improve stance, performance, and capability. BDS Suspension has designed this 3.5-inch lift kit for your 1987-1995 Jeep Wrangler YJ. This kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.


This 3.5-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, brake line brackets, power steering pitman arm, bump stop extensions, and a transfer case drop kit to ease the drive line angles.


Round out this kit with specially tuned NX2 nitro series gas shocks to offer improved damper performance.


Glide-Ride Leaf Springs


Built to outperform, BDS engineered the Glide-Ride leaf springs into a multi-leaf progressive spring rate design that provides a smooth ride with any load. This is accomplished with an exclusive triple-stage leaf spring design.


These spring feature tapered leafs, anti-friction pads, bolt style leaf alignment clamps and a full military wrap to protect your spring eyes from the rocks. Upgrading to BDS Glide-Ride leaf springs will provide flexibility throughout the suspension cycle.



  • Front Lift Method: Leaf Spring

  • Rear Lift Method: Leaf Spring

  • Shocks Included: Yes

  • Front Lift Height: 3.5 inch

  • Rear Lift Height: 3.5 inch



  1. May require driveshaft lengthening for 13 inch (u-joint to u-joint) driveshaft.

  2. May require larger diameter driveshaft if equipped with a 41-1/2 inch front driveshaft.

  3. Extended shackles recommended to clear military wrap.

  4. Models with accessories like hardtop, rear Tire carrier, roof rack etc., should use #004351 springs on front and rear.

  5. When combining lifted shackles with a 3.5 inch suspension system, a tail shaft eliminator kit and a inchCV inch style rear driveshaft may be required to eliminate driveline vibration.

  6. Pitman arms will NOT fit Yj models equiped with manual steering.



  • Glideride leaf springs to provide full lift height and increased capacity

  • Front and rear track bar relocation brackets to center the axle

  • Transfer case drop kit to ease the drive line angles

  • Standard NX2 Nitro shocks with vehicle-specific valving for better control

  • Easy, 100 percent Bolt-on installation


Rear Lift Option


Select the appropriate rear springs based on the weight of your vehicle and hard top vs. soft top.



  • Heavy Duty Leaf Springs - Use these springs if you plan to run additional weight beyond the stock spare and a soft top. A must for hard top applications and will still ride great when you take your hard top off.

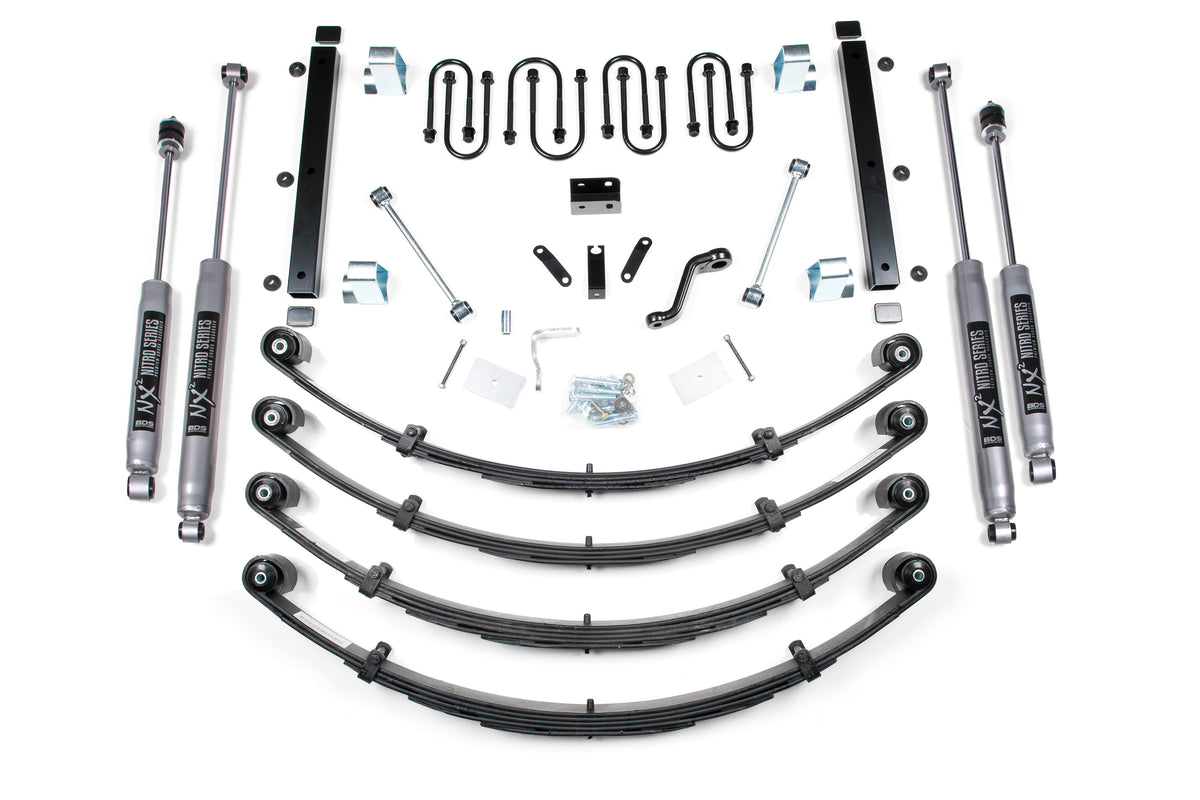

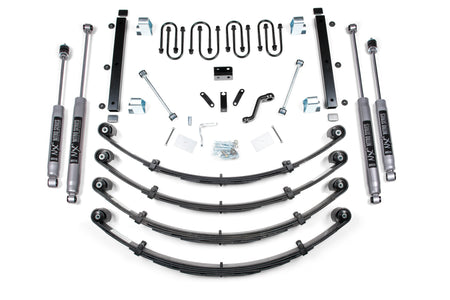

Kit Components:



  • Includes four BDS004351, 87-95 Jeep YJ 3.5in Front Spring, UPC Code 658848611515

  • Includes one BDS014351, 87-95 Jeep YJ 3.5 inch Box Kit, UPC Code 658848614080

  • Includes one BDS084404, Jeep YJ/TJ Pitman Arm - PS, UPC Code 658848618354

  • Includes one BDS124001, Jeep YJ Frt Anti-sway Bar Lnk Kt w/bush, UPC Code 711745604506

  • Includes two BDS85950, Shock- 22.95 x 14.65 x 2 - EB1/EB1, UPC Code 711745610033

  • Includes two BDS85955, Shock- 28.15 x 16.45 x 2 - S1/EB1, UPC Code 711745610088
