08-10 Ford F-250/F-350 Super Duty 6 Inch Lift Kit Diesel With Overload With Nitro Shocks Zone Offroad

SKU: ZONF35N-FQMS
(0)
$1,532.71 USD

When you go big you can go anywhere. This 6 Inch Radius Arm Lift Kit puts your truck into a class of its own, letting you clear huge 3 Inch Inch tires. Get the look and performance you want out of your Diesel 4WD 2008 - 2010 Ford F-250 / F-3 Inch0.
Quick Specs:



  • Front Lift Height 6 Inch

  • Rear Lift Height 4 Inch

  • Front Lift Method Radius Arm Drop

  • Rear Lift Method Dual Add-A-Leafs & Block Kit

  • Lift Type Lift Kit

  • Wheel Size 17 x 9

  • Back Spacing 4.5 Inch

  • Max Tire Size 3 Inch x 12.5

  • Wheel Size 2 18 x 9

  • Back Spacing 2 4.5 Inch

  • Max Tire Size 2 3 Inch x 12.5

  • Wheel Size 3 Inch20 x 9

  • Back Spacing 3 Inch4.5 Inch

  • Max Tire Size 3 Inch3 Inch x 12.5

  • Finish Powdercoat

  • Cutting Required No

  • Accommodates Factory Wheels See Notes

  • Welding Required No

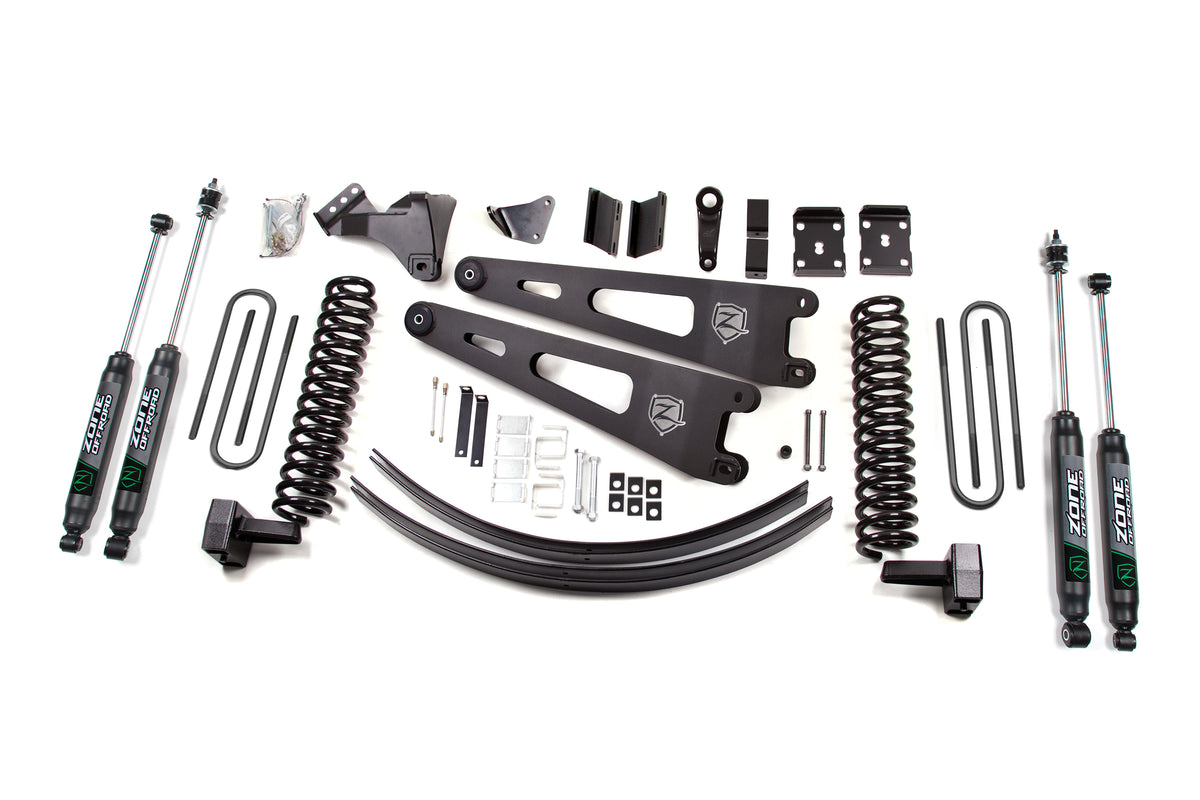

In The Box:



  • Add-A-Leaf's

  • All Necessary Mounting / Installation Hardware

  • Coil Springs

  • Dropped Pitman Arm

  • Rear Lift Block & U-Bolt Kit

  • Sway Bar Relocation Brackets

  • Radius Arms


Features:



  • Brake line relocation brackets allow re-use of factory brake lines.

  • Bump stop extensions properly limit up-travel, protecting your vehicle.

  • Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity.

  • Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.

  • High-strength, 1/4 Inch steel radius arms correct caster, improve tire clearance, and maximize ground clearance.

  • Rear lift block and longer U-bolts for easy installation and level stance.

  • Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.

  • Sway bar relocation brackets maintain operating angle for reduced body roll


Kit Components:



  • ZON7750 Nitro- 27.40 x 16.20 x 2-3/8 S50/EB2 2 711745595675

  • ZON7763 Nitro- 33.00 x 19.25 x 2-3/8 EB1/EB1 2 711745595798

  • ZONF1308 11 Ford F250/350 4 Inch Rear With Overload 1 711745599109

  • ZONF1601 2005-2022 Ford Super Duty Radius Arm (One) 2 711745599291

  • ZONF1603 08-10 Super Duty 6 Inch Box Kit 1 711745599314

  • ZONF1613 2005-2024 Super Duty 6 Inch Diesel Coil(one) 2 711745599369

  • ZONF6209 08-12 Super Duty Dual Add-a-leaf 1 711745599956
