Home » 05-15 Toyota Tacoma 4 Inch Front 3 Inch Rear Lift Kit With Nitro Shocks Zone Offroad
Zone Offroad

05-15 Toyota Tacoma 4 Inch Front 3 Inch Rear Lift Kit With Nitro Shocks Zone Offroad

SKU: ZONT4N-FQMS
(0)
$1,306.65 USD

Raise it up with this 4 Inch Lift Kit made for serious off road adventure. Featuring a combination of strut spacers, iron knuckle for the front and cast blocks for the rear.


This kit clears your 4WD 2005 - 2015 Toyota Tacoma for tires up to 33 Inches with some trimming.
Quick Specs:



  • Front Lift Height 4 Inch

  • Rear Lift Height 3 Inch

  • Front Lift Method Knuckle & Strut Spacer

  • Rear Lift Method Cast Blocks

  • Lift Type Lift Kit

  • Wheel Size 18 x 9

  • Back Spacing 4.5 Inch

  • Max Tire Size 33 x 12.5

  • Wheel Size 2 20 x 9

  • Back Spacing 2 4.5 Inch

  • Max Tire Size 2 33 x 12.5

  • Wheel Size 3 22 x 9

  • Back Spacing 3 4.5 Inch

  • Max Tire Size 33 x 12.5

  • Is Adjustable No

  • Finish Powdercoat

  • Cutting Required No

  • Accommodates Factory Wheels No

  • Welding Required No

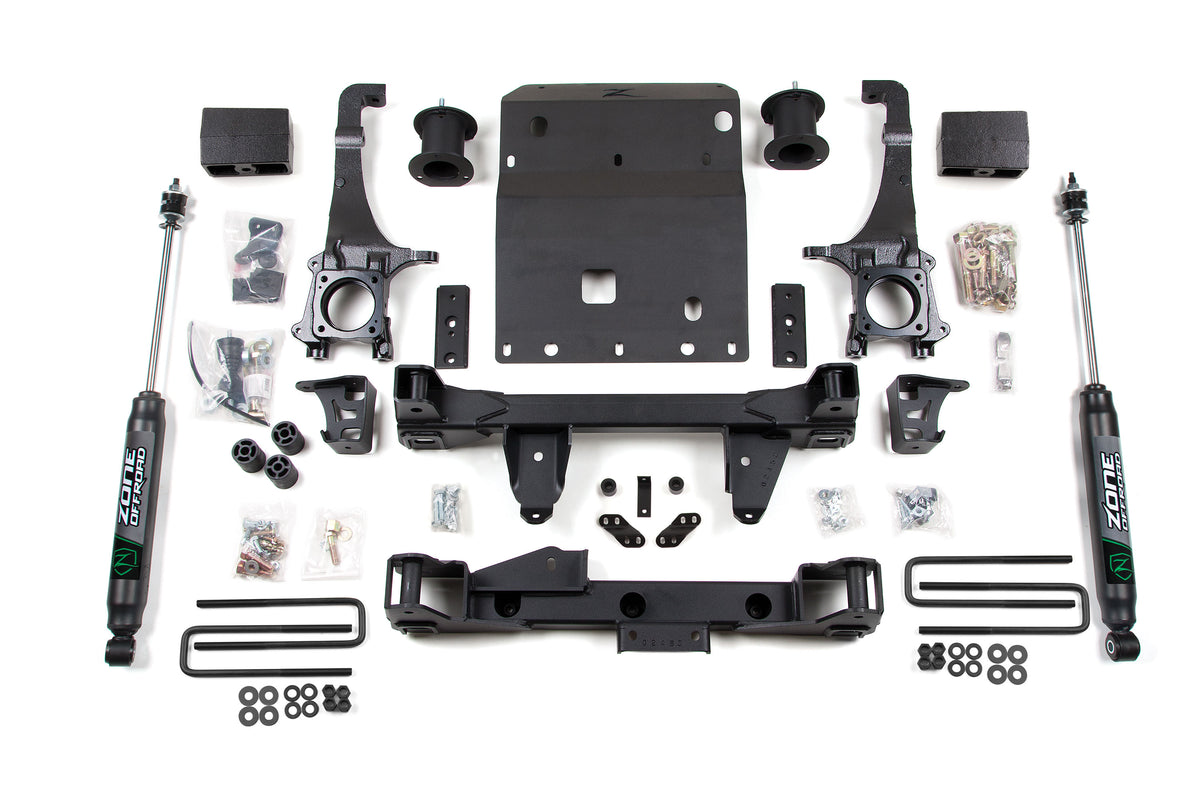

In The Box:



  • All Necessary Mounting / Installation Hardware

  • Crossmembers

  • Rear Lift Block & U-Bolt Kit

  • Steering Knuckles

  • Strut Spacers


Features:



  • High strength crossmembers to correct lower control arm positioning

  • Ductile iron steering knuckles to corect steering geometry and maintain ESC system compatibility

  • Top mounted strut spacers to provide lift and install easily

  • Full width belly skid plate offers improved offroad protection

  • Rear lift blocks and u-bolts to lift and level the stance

  • Bump stop, sway bar and brake line relocation brackets to correct operating angles


Kit Components:



  • ZON7954 Nitro- 26.50 x 15.60 x 2-3/8 S1/EB1 2 711745596092

  • ZONT2309 05-23 Toyota Tacoma 3 Inch Rear Block Kit 1 711745601789

  • ZONT2401 2005-2015 Toyota Tacoma Box Kit (2of3) 1 711745601796

  • ZONT2600 05-23 Toyota Tacoma Box Kit (1of3) 1 711745601888

  • ZONT2602 2005-2015 Toyota Tacoma Box Kit (3of3) 1 711745601901
